gesture control module

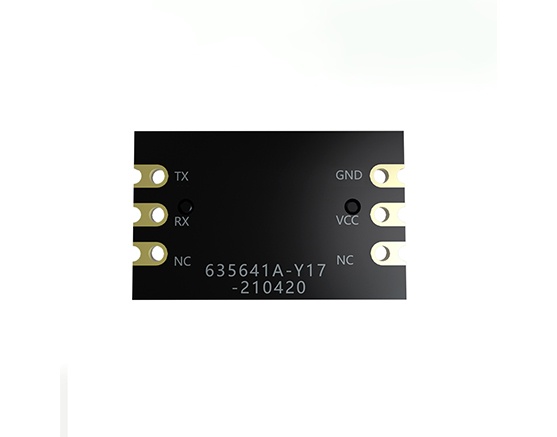

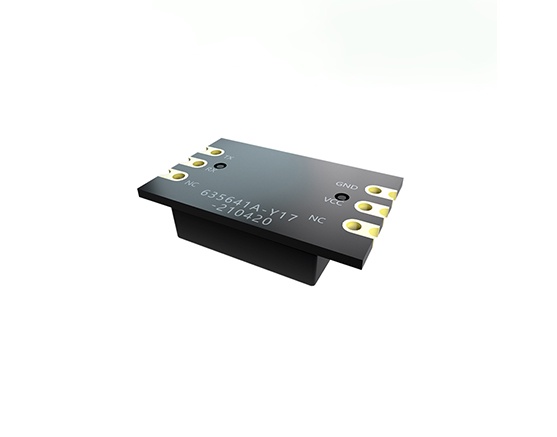

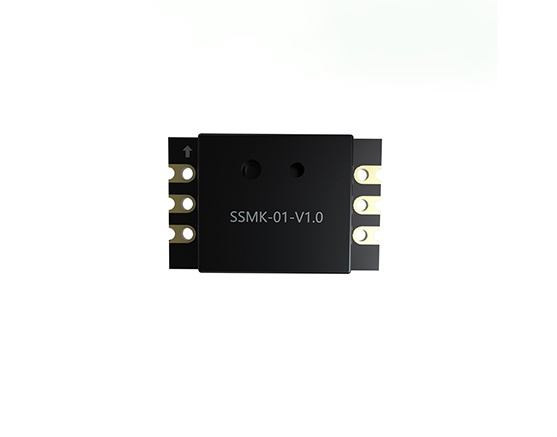

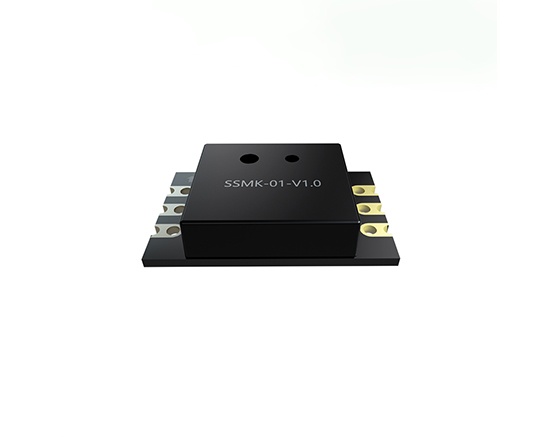

Bandary gesture control sensor module SSMK-01 integrates gesture recognition and ambient Light detecting functions in one piece, it can detect 9 kinds of gestures, and adjust detection range within 0-20cm ,suitable for interactive projects.



1. The sensor is equipped with the function of auto-sleep and wake up. The module comes with the gesture recognition algorithm and provides simple and reliable data output. Use the sensor to directly communicate with upper computer or micro-controllers like Arduino and Raspberry Pi via serial port.

2. When installed our SSMK-01on your device , it can output 7 kinds of gestures: move left, move right, move forward, move backward, pull up, pull down, pull and remove.

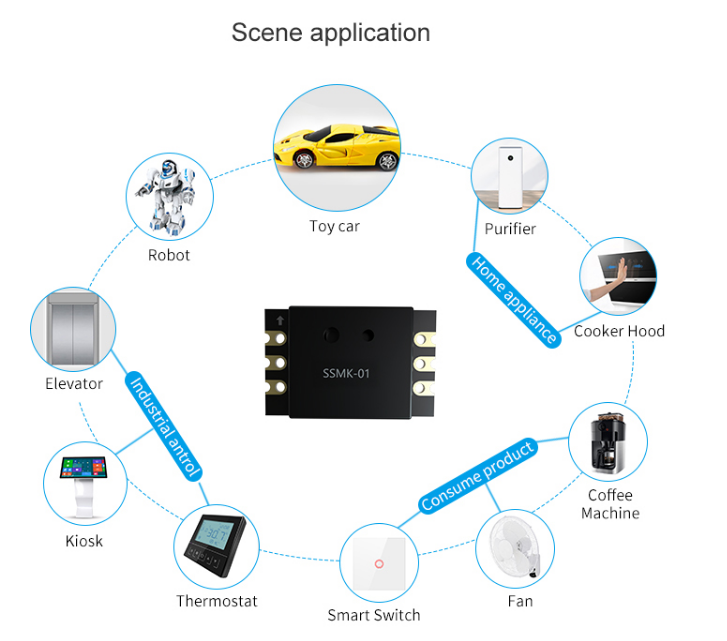

3. Gesture control module can be used to make smart lamp, DIY intelligent car, robot ,or used in interactive projects requiring gesture recognition.
